Lithium Energy Storage System

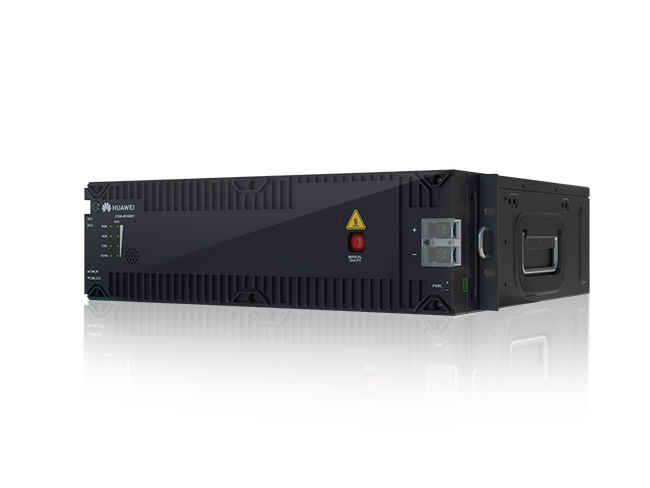

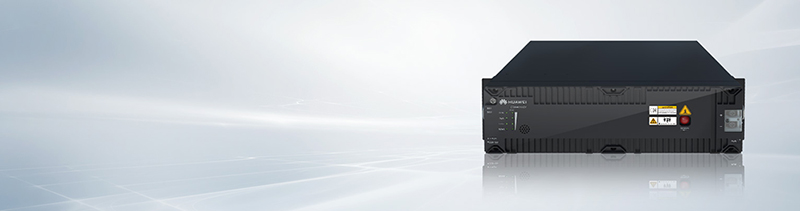

Intelligent Lithium Energy Storage System

Huawei Intelligent Lithium Energy Storage System boasts advanced energy storage modules developed based on cutting-edge Li-ion technologies. Offering a range of intelligent features and a long battery life, the system effectively boosts power reliability at the customer site. A software-enabled anti-theft feature reduces the battery theft rate from 15% to almost zero.

For backup scenarios, the lifespan of the Intelligent Energy Storage System is twice that of ordinary Valve-Regulated Lead Acid (VRLA) batteries, significantly reducing the frequency of site failures caused by low battery capacity.


Specifications

ParametersESM-48100B1ESM-48150B1
Cathode MaterialLiFePO4LiFePO4
Nominal Voltage48 V DC51.2 V DC
Nominal Capacity100 Ah150 Ah
CertificationCE, UN38.3CE, UN38.3
Dimensions (H x W x D)
130 x 442 x 396 mm
160 x 442 x 560 mm
WeightApprox. 43 kgApprox. 65 kg
Installation ModeStandard 19-inch rackStandard 19-inch rack
Communication InterfaceCAN/RS485; 2 dry contactsCAN/RS485; 2 dry contacts
TerminalM6, torque 4N·mM6, torque 4N·m
Nominal Charging Voltage53.5 V DC56.4 V DC
Cycle Life3500 cycles3500 cycles
Self Discharging at 25ºC
Less than 5% after 90 days of storageLess than 5% after 90 days of storage
ProtectionOver temperature, overcurrent, short circuit, over-charging, over-discharging, and moreOver temperature, overcurrent, short circuit, over-charging, over-discharging, and more
Operating TemperatureCharging: 0ºC to 45ºC; Discharging: –20ºC to 45ºC
Charging: 0ºC to 45ºC; Discharging: –20ºC to 45ºC
Storage Temperature0ºC to 40ºC0ºC to 40ºC
Transport Temperature–40ºC to 60ºC
–40ºC to 60ºC
Relative Humidity5% to 95%5% to 95%
Operating Atmospheric Pressure61–113 kPa
61–113 kPa
Intelligent Hybrid Use√ (with Huawei power system)√ (with Huawei power system)
Intelligent Anti-Theft
Intelligent Peak Staggering√ (with Huawei power system)√ (with Huawei power system)
Intelligent Voltage Boosting√ (with Huawei power system)√ (with Huawei power system)
