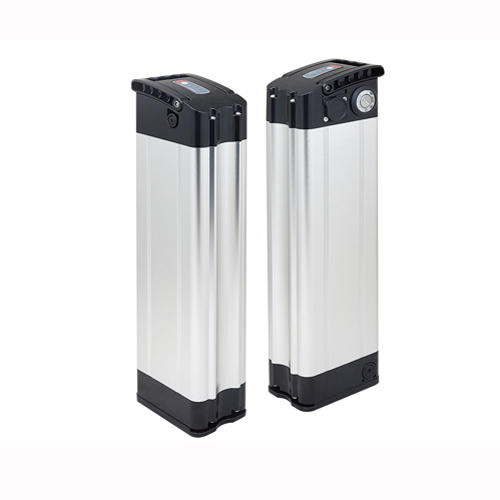

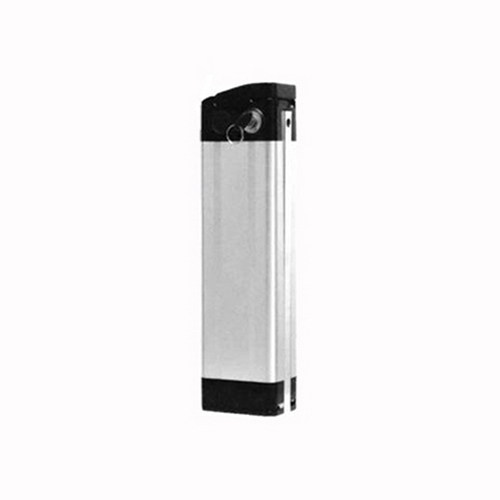

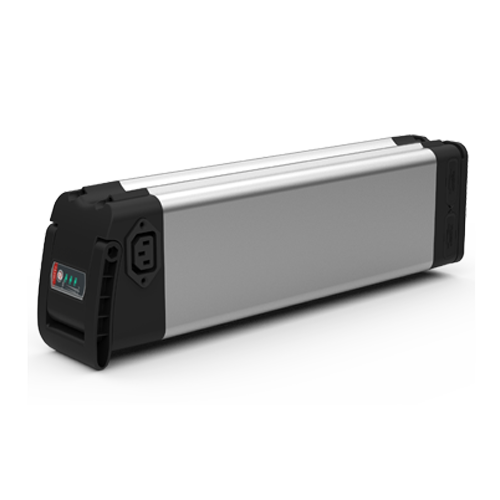

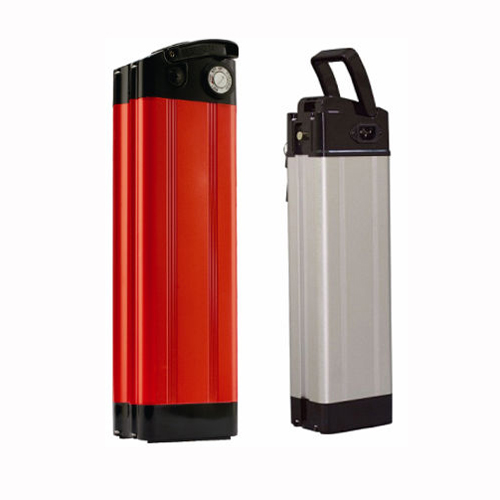

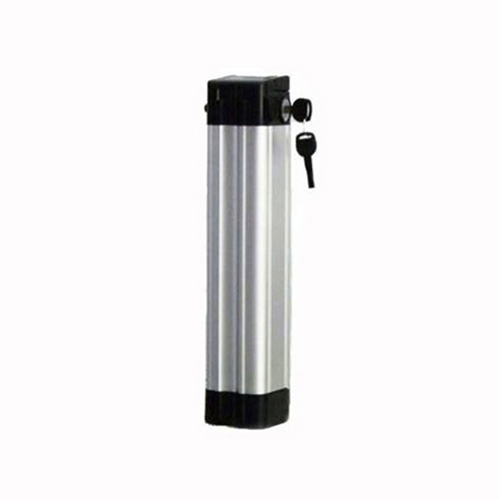

48V 15.6Ah electric bike battery pack

SAMSUNG 48V 15.6Ah

容量/Capacity(0.2C )

15.6Ah




额定电压/Nominal Voltage

48V

充电截止电压/Charge Voltage

54.6V

放电截止电压/Discharge Cut-off Voltage

39V

标充电流/Standard charge current

2A

最大持续放电电流/Max.

continuous discharge current

20A.

最大脉冲放电电流/Max. pulse

discharge current(≤10s)

65A












电芯/Battery Cells

13S6P SAMSUNG 18650-26FM

外壳/Packaging Shell

Aluminum & ABS+PC

重量/Weight (Approx.)

≤5.0Kg

尺寸/Dimensions(Approx.)

75*110*380mm

内阻/Impedance (Max, at 1000Hz)

≤150mΩ

循环次数/Cycle Life(80DOD%)

≥800次


自放电/Self-discharge Rate

≤3%

充电方式/Charge

Method (CC/CV)

标充/Standard

0.2C5A×6.5 hr.

快充/Quick

1 C5A×2.5 hr.

工作温度

/Operating

Temperature

充电/Charge

0℃~45℃

放电/Discharge

-10℃~60℃

储存/Storage

-20℃~45℃

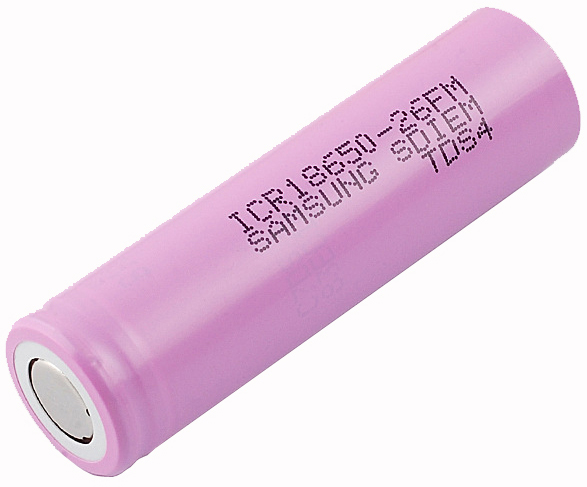

电芯Cell

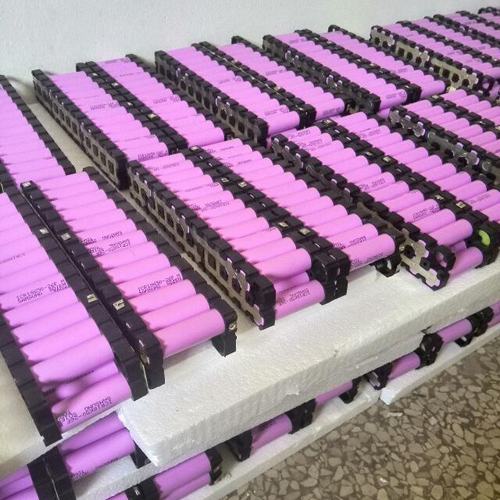

组装Pack

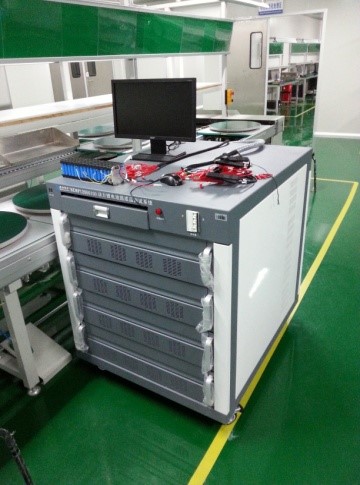

成品测试Battery Test

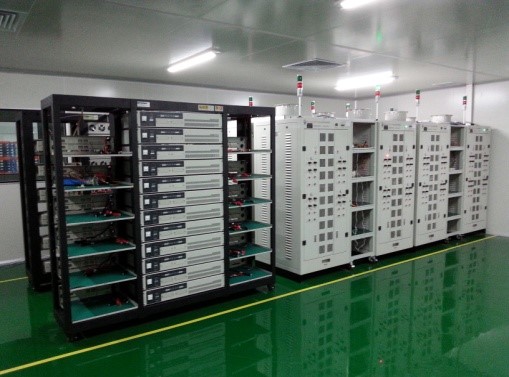

充放化测试Aging Test


psb23 (1).jpg
