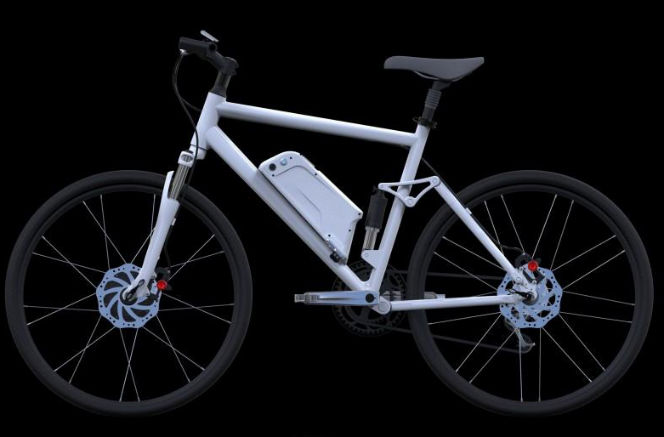

Battery for Bicycles & Tricycles

  • 48V 11.6Ah
  • 48V 11.6Ah
  • 48V 11.6Ah

48V 11.6Ah

SAMSUNG 48V 11.6Ah

容量/Capacity(0.2C 6.8A)

11.6Ah




额定电压/Nominal Voltage

48V

充电截止电压/Charge Voltage

54.6V

放电截止电压/Discharge Cut-off Voltage

39V

标充电流/Standard charge current

2A

最大持续放电电流/Max.

continuous discharge current

20A.

最大脉冲放电电流/Max. pulse

discharge current(≤10s)

50A




















电芯/Battery Cells

13S4P SAMSNUG 18650/2900mAh

外壳/Packaging Shell

Aluminum & ABS+PC

重量/Weight (Approx.)

≤3.3Kg

尺寸/Dimensions(Approx.)

82*132*360mm

内阻/Impedance (Max, at 1000Hz)

≤150mΩ

循环次数/Cycle Life(80DOD%)

≥600次

自放电/Self-discharge Rate

≤3%


充电方式/Charge

Method (CC/CV)

标充/Standard

0.2C5A×6.5 hr.



快充/Quick

1 C5A×2.5 hr.


工作温度

/Operating

Temperature

充电/Charge

0℃~45℃



放电/Discharge

-10℃~60℃



储存/Storage

-20℃~45℃


电芯Cell

组装Pack

成品测试Battery Test

充放电老化测试Aging Test
