Lithium Battery Cells

  • Prismatic cell
  • Prismatic cell
  • Prismatic cell

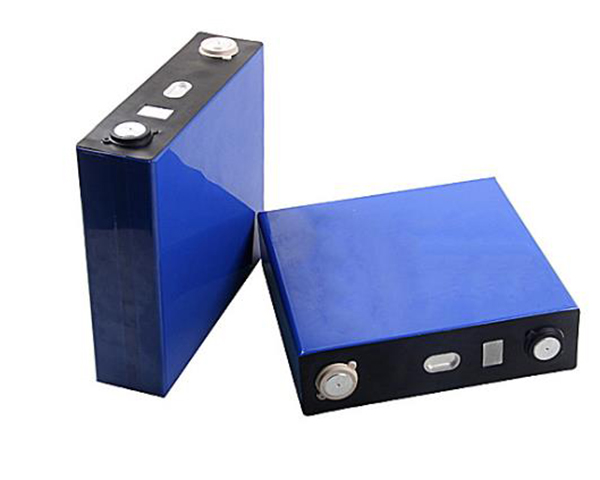

Prismatic cell

TOP NEW ENERGY have well-experienced in-house engineering team is taking good use of solid expertise and advanced test equipment, to help our clients select the most cost effective, suitable, safe and high -quality lithium batteries.

Selecting the most excellent cells that work best for your specific need is always our priority.


ModelCapacity  (Ah)Dimension (mm)AC-impedance(mΩ)Weight
Max. Discharge RateMax. Charge RateConnection
LFP505014996-102400.41.250150A 10S2550 laser
LFP8686174127.6-132480.32.1586258A 10S4386screw
LFP100100174127.6-132480.352.25100300A 10S50100screw


LFP206206175200-207540.44.2103412A 10S103206 laser
LFP270277174200-207720.45.8277831A 10S138277 laser

Key Features

- Battery cell with long cycle life ranging 2000 to 5000.

- Allows fast charge and high current discharge.

- Allows high efficiency charge and discharge cycles.

- Greater energy density than lead-acid batteries.

- CE, UL, BIS certificated.

- Safety and reliability ensured by tier-1 cell manufacturers

Value-added Service

Thanks to introducing a tailor-made advanced HAN’S automatic laser welding machine, TOP NEW ENERGY is able to customize prismatic lithium battery cell with different terminal solutions, to better suit customers’ special needs for battery module manual configuration.

With the profound understandings of lithium-ion battery design, TOP NEW ENERGY is able to deliver 3.2V battery modules with prismatic cells configured in series and parallel, according to customers design and requirements.


Q1: : How can I use this battery to configurate a battery power bank?

A: You can configurate the 3.2V LiFePO4 battery cells with standard equipped busbar for easy connection, even by manual. Please let us know the configuration of series and parallels so that our team will advise you the specific busbars to use.


Q2: What does the connection remarks mean?

A: The connection remark as “S” means can be connected via screw busbar by manual; “L” means can be only connected via laser connection welding machine. While taking advantage of the advanced high-power laser machine, TOP NEW ENERGY can help design customized terminals to convert the laser connection way into screw connection way.


Q3: Can I connect 4 of these cells in series for 12V solar system?

A: Yes, the prismatic cell is an ideal solar battery. It is easy to connect them in series or parallel with busbars, and purchase a BMS according to the parameters that the battery bank is.
