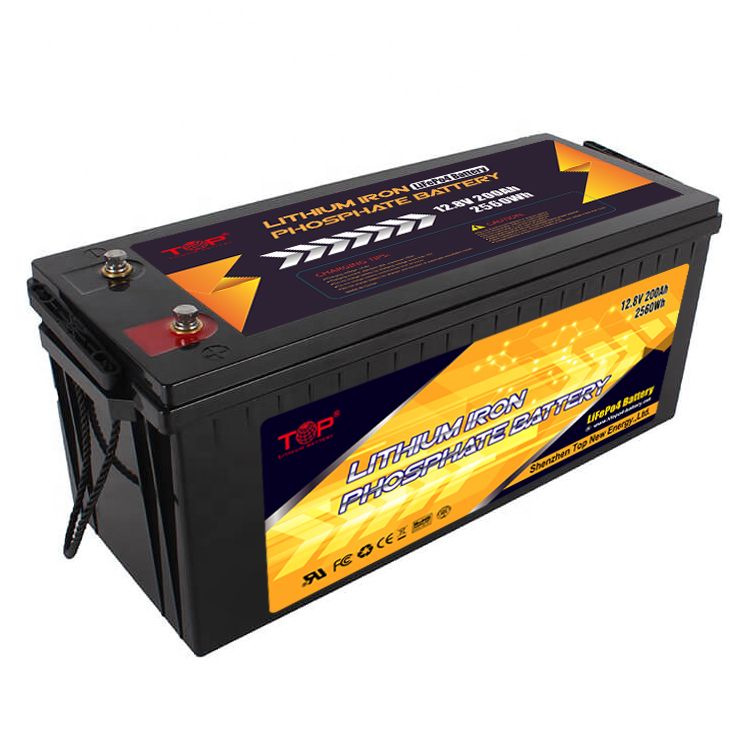

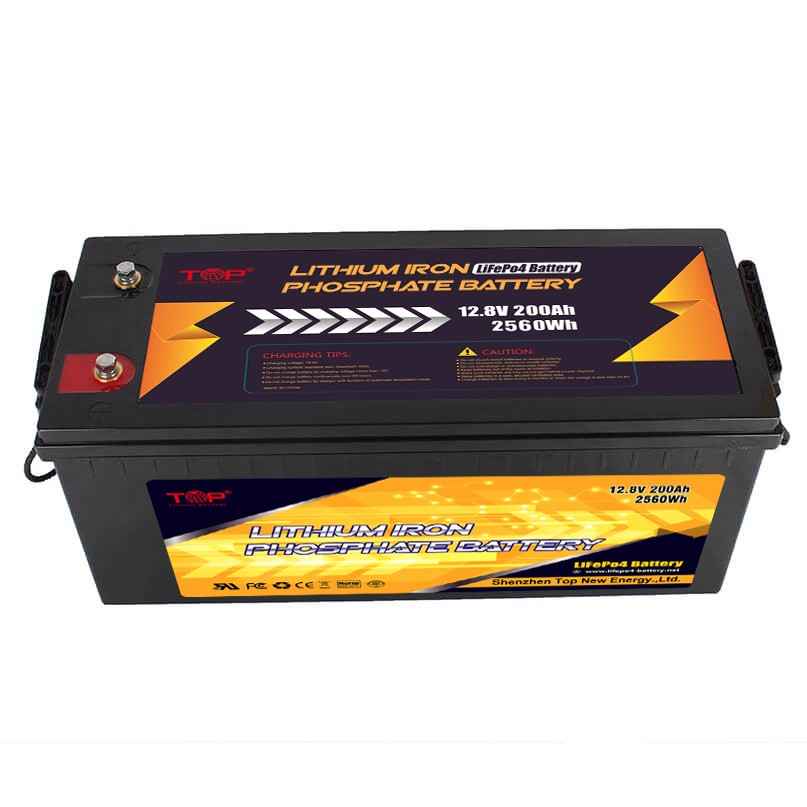

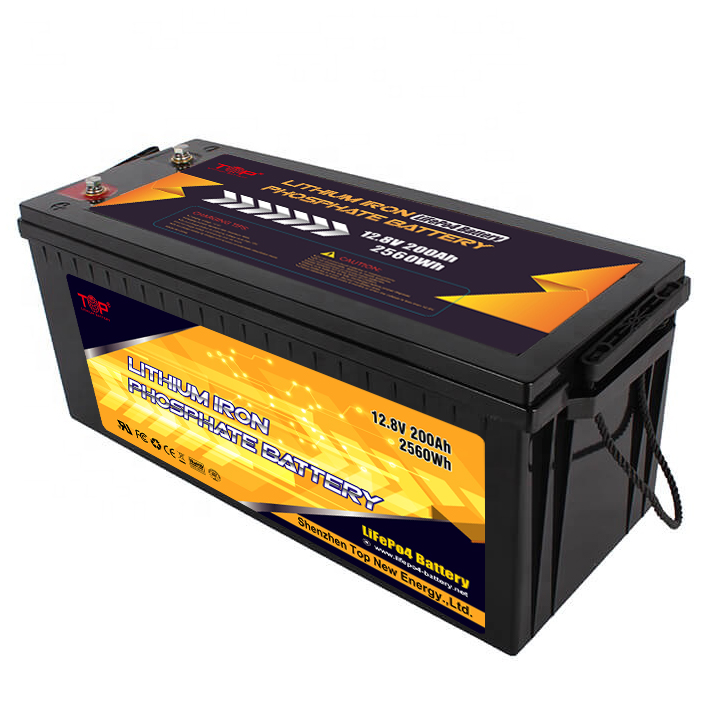

12.8V200Ah LiFePo4 Battery

  • Lead Acid Replacement Battery

    12.8V200Ah LiFePo4 Battery

    LiFePO4 Battery is widely used in Recreation vehicle、Fishing boat、Energy storage、 UPS、 Golf cart and other lead acid battery replacement.

  • CONTACT US

LiFePO4 Battery Specification

磷酸铁锂电池规格书

MODEL/型号:IFR200Ah 12.8V

Product Specification

Rated Capacity额定容量

200Ah

Nominal Voltage额定电压

12.8V

Voltage at end of Discharge放电截止电压

10.0V

Charging Voltage 充电电压

14.6V

Internal Impedance内阻

200mΩ

Cell 单体电芯

IFR48174132 100Ah 3.2V 4S2P

Standard charge标准充电

Constant Current 0.2C5A Constant Voltage 14.6V 0.01C cut-off持续电流:0.2C5A

持续电压14.6V 截止电流:0.01C

Standard discharge 标准放电

Constant current 0.2C5A end voltage 10.0V

持续电流:0.2C5A 截止电压:10.0V

Maximum Continuous Charge Current

最大持续充电电流

50A   (150A Max )

Maximum Continuous Discharge Current

最大持续放电电流

150A  (Can be customized)

Peak current

峰值电流

300±50A10mS

Operation Temperature Randge

工作温度范围

Charge充电:0~45

Discharge放电:-10~60

Size尺寸

522*240*220mm

Weight重量

27kg

BMS Specification

Cell over charge detection voltage单体过充电检测电压

3.9V±50mV

Cell over charge recovery voltage过充电恢复电压

3.8V±100mV

Cell over-discharge detection voltage 过放电检测电压

2.0V±100mV

Cell over discharge recovery voltage 过放电恢复电压

2.5V±100mV

Rated operational charge current工作电流

150A

Over current detection 过流检测值

300A±50A

PCM impedance 线路板内阻

50mΩ
