12V Deep Cycle LiFePo4 Batteries

  • 50Ah 12.8V LiFePO4 battery
  • 50Ah 12.8V LiFePO4 battery
  • 50Ah 12.8V LiFePO4 battery
  • 50Ah 12.8V LiFePO4 battery

50Ah 12.8V LiFePO4 battery

Product Specification



Rated Capacity额定容量

50Ah

Nominal Voltage额定电压

12.8V

Voltage at end of Discharge放电截止电压

10.0V

Charging Voltage 充电电压

14.6V

Internal Impedance内阻

200mΩ

Cell 单体电芯

LiFePo4 5Ah 3.2V 4S10P

Standard charge标准充电

Constant Current 0.2C5A Constant Voltage 14.6V 0.01C cut-off持续电流:0.2C5A

持续电压14.6V 截止电流:0.01C

Standard discharge 标准放电

Constant current 0.2C5A end voltage 10.0V

持续电流:0.2C5A 截止电压:10.0V

Maximum Continuous Charge Current

最大持续充电电流

0.5C 25A

Maximum Continuous Discharge Current

最大持续放电电流

1.0C 50A

Peak current

峰值电流

3C150A3S

Operation Temperature Randge

工作温度范围

Charge充电:0~45

Discharge放电:-10~60

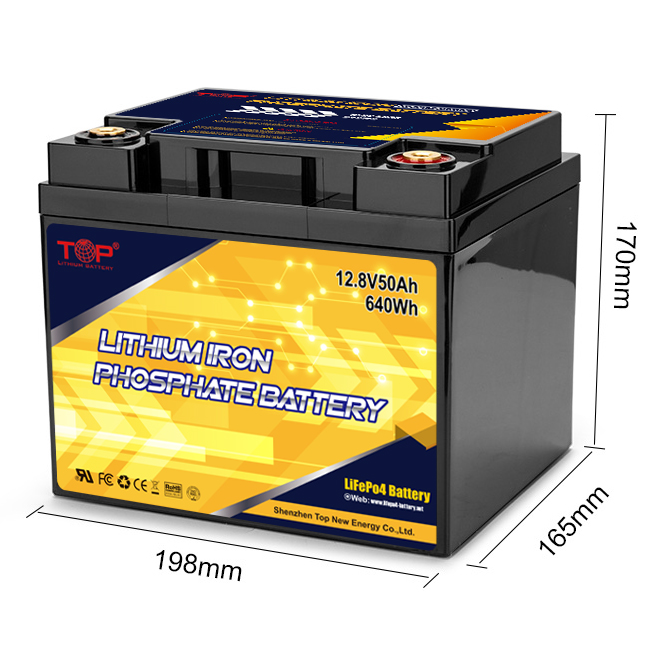

Size尺寸

198*166*170mm

Weight重量

≈7kg

BMS Specification

Cell over charge detection voltage单体过充电检测电压

3.9V±50mV

Cell over charge recovery voltage过充电恢复电压

3.8V±100mV

Cell over-discharge detection voltage 过放电检测电压

2.0V±100mV

Cell over discharge recovery voltage 过放电恢复电压

2.5V±100mV

Rated operational charge current工作电流

50A

Over current detection 过流检测值

150A±10A

PCM impedance 线路板内阻

50mΩ
