12V Deep Cycle LiFePo4 Batteries

  • 100Ah with display
  • 100Ah with display

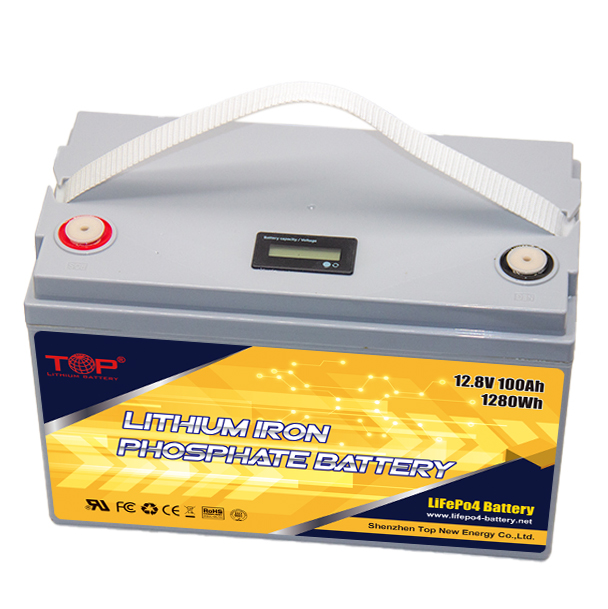

100Ah with display

Product Specification





Rated Capacity额定容量

100Ah

Nominal Voltage额定电压

12.8V

Voltage at end of Discharge放电截止电压

10.0V

Charging Voltage 充电电压

14.6V

Internal Impedance内阻

200mΩ

Cell 单体电芯

IFR48174132 100Ah 3.2V

Standard charge标准充电

Constant Current 0.2C5A Constant Voltage 14.6V 0.01C cut-off持续电流:0.2C5A

持续电压14.6V 截止电流:0.01C

Standard discharge 标准放电

Constant current 0.2C5A end voltage 10.0V

持续电流:0.2C5A 截止电压:10.0V

Maximum Continuous Charge Current

最大持续充电电流

0.5C 50A

Maximum Continuous Discharge Current

最大持续放电电流

1.0C 100A

Peak current

峰值电流

3C300A3S

Operation Temperature Randge

工作温度范围

Charge充电:0~45

Discharge放电:-10~60

Size尺寸

330*172*215mm

Weight重量

12kg

BMS Specification

Cell over charge detection voltage单体过充电检测电压

3.9V±50mV

Cell over charge recovery voltage过充电恢复电压

3.8V±100mV

Cell over-discharge detection voltage 过放电检测电压

2.0V±100mV

Cell over discharge recovery voltage 过放电恢复电压

2.5V±100mV

Rated operational charge current工作电流

100A

Over current detection 过流检测值

300A±50A

PCM impedance 线路板内阻

50mΩ
