12V Series

  • Lead Acid Replacement Battery
  • Lead Acid Replacement Battery
  • Lead Acid Replacement Battery
  • Lead Acid Replacement Battery

Lead Acid Replacement Battery

  • Product Features

    Excellent Cycle and Calendar Life

    High Energy Density

    High Cycle Round Trip Efficiency (RTE)

    Low Total Cost of Ownership (TCO)

    Wide Working Temperature Range


  • Online order

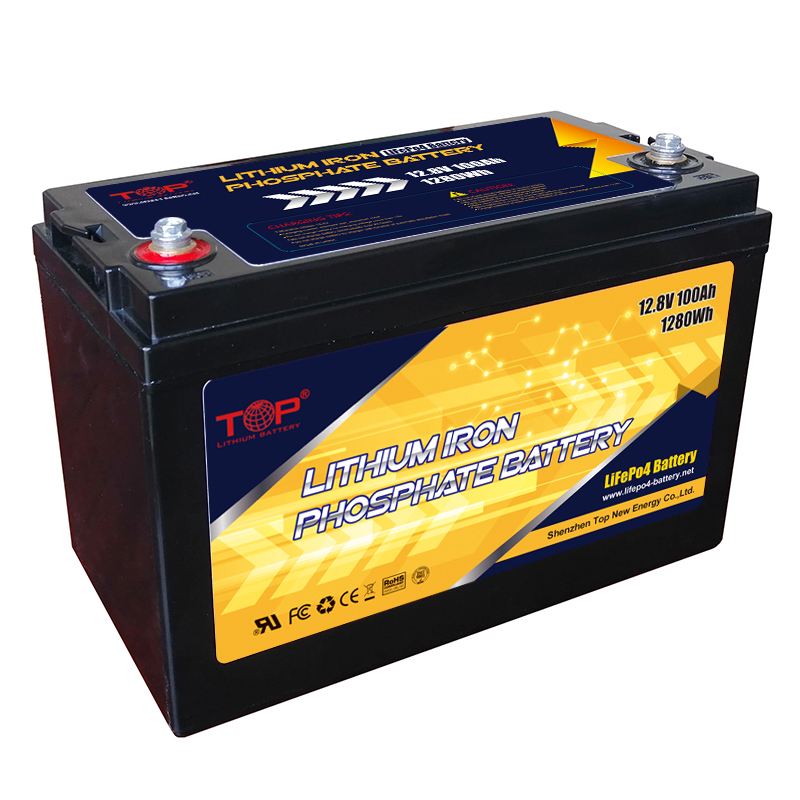

TNE-LFP 12V Series LiFePO4 Battery is an ideal replacement for traditional lead acid battery utilizing advanced LiFePO4 technology  and integrated BMS with the benefits of long cycle life, light in weight, safety and excellent high and low temperature performance. TNE-LFP 12V Series Lithium-ion Battery is widely used in energy storage, UPS, golf cart and other lead acid battery replacement.


Specifications

MODEL

CAPACITY
(Ah)

ENERGY
(Wh)

CHARGE
CURRENT
(A)

MAX CHARGE CURRENT
(A)

MAX DISCHARGE CURRENT
(A)

PULSE CURRENT
(<3S)

DIMENSIONS
(MM)

TERMINAL

TNE-LFP 12V-7

7

90

1.4

7

7

14

151*65*100

F1/F2

TNE-LFP 12V-10

10

128

2

10

10

20

151*98*100

F2

TNE-LFP 12V-20

20

256

4

20

20

40

181*77*167

M5

TNE-LFP 12V-33

33

422

6.6

33

33

66

196*132*180

M6

TNE-LFP 12V-40

40

512

8

40

40

80

196*166*184

M6

TNE-LFP 12V-75

75

960

15

75

75

200

260*169*227

M6

TNE-LFP 12V-90

90

1152

18

90

90

300

307*169*228

M8

TNE-LFP12V100

100

1280

50

100

100

300

333*172*221

M8

TNE-LFP12V150

150

1920

50

100

100

300

483*170*241

M8

TNE-LFP12V200

200

2560

50

100

100

300

522*240*245

M8


TNE-LFP 12V series is the Lithium battery that can be widely used for deep cycle applications with more power and less weight than traditional Lead acid batteries as well as below features.


● Long cycle life: 10 times of Lead acid battery’s cycle life

● More usable capacity: up to 100% usable energy

● Fast charging: 10 times faster than Lead acid battery

● Easy installation: drop-in replacement for Lead acid battery

● Low self-discharge: <2% per month

● Compatible with AGM battery chargers

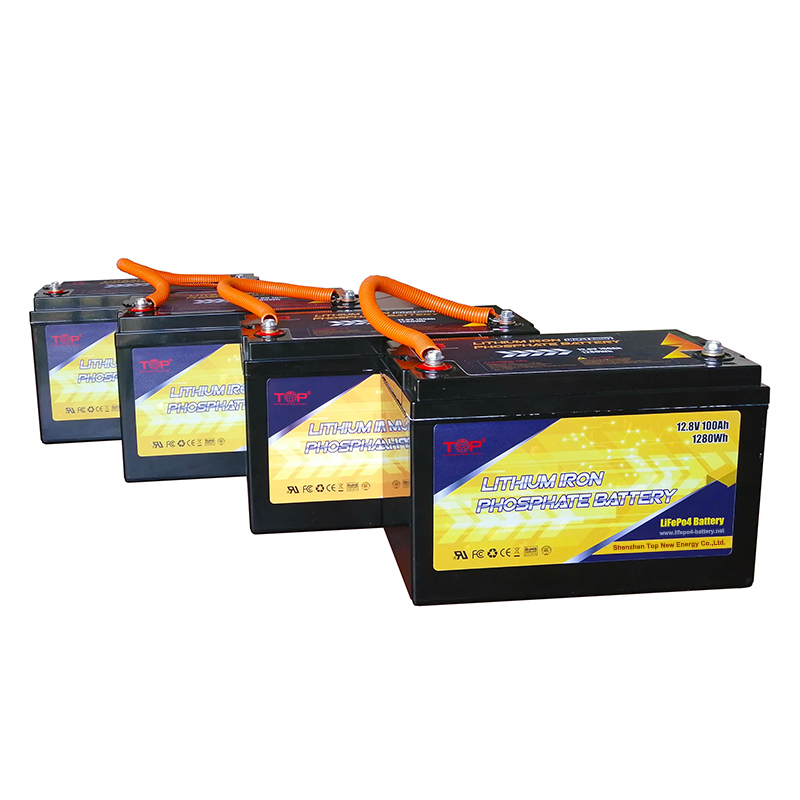

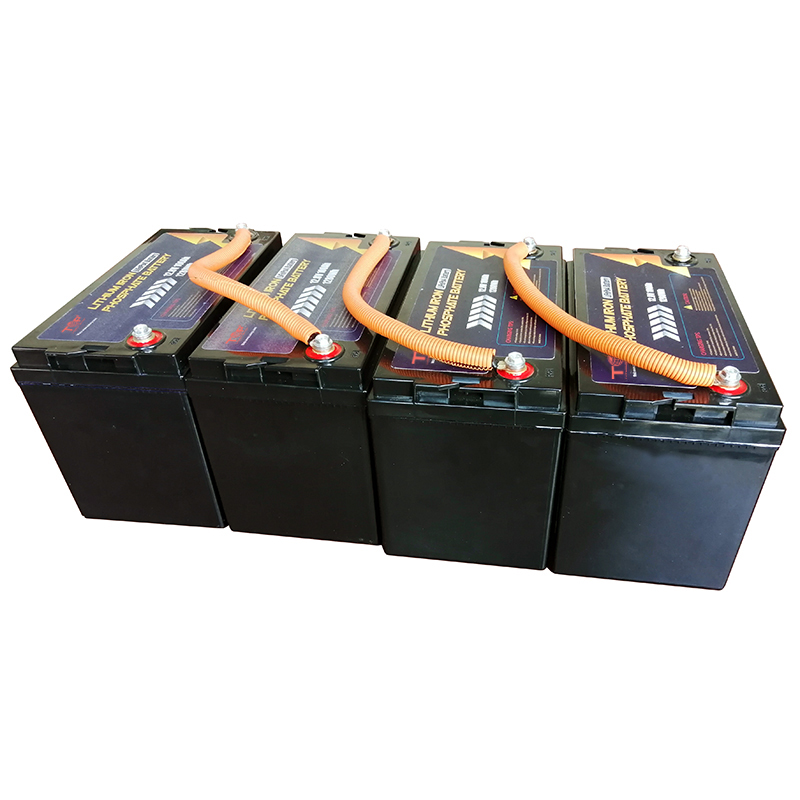

● Increase flexibility: up to 4 batteries connected in series

● Built-in BMS ensuring battery safety and efficient operation



FAQ


Q1: Can TNE-LFP 12V series be assembled in series or parallel?

A: TOP NEW ENERGY TNE-LFP 12V series only can be connected in series, but cannot be connected in parallel. You can connect 2 or more batteries (up to 4) together in series to increase the voltage of the battery system. For example, if you connect 4*12V100Ah Lithium batteries in series, the battery system will be 48V100Ah.


Q2: Can I charge the TNE-LFP 12V series with the Lead acid battery charger?

A: Yes. Our TNE-LFP 12V series is compatible with AGM battery chargers. To ensure a safe charge, see our user manual for more details.


Q3: What can I use the TNE-LFP 12V series for?

A: TOP NEW ENERGY TNE-LFP 12V series can be commonly applied for many applications. You can build the Lithium battery for a solar system, and directly replace Lead acid battery for you RVs, marines and other deep cycle applications.
