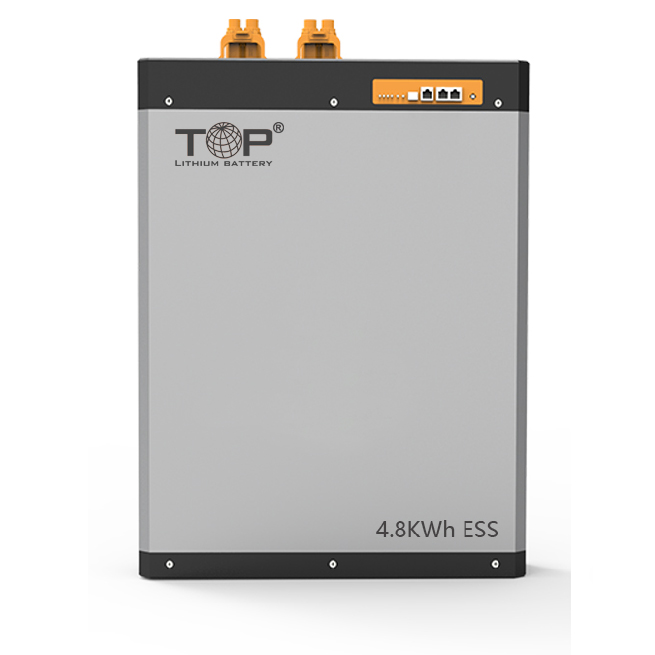

The product installation method is wall-mounted,
the main body of the shell is a sheet metal iron box,
the surface is silver, the upper and lower sides are black,
the bottom has a transport space structure,
the upper right corner of the front has a power indicator,
a running light, a fault light, and a parallel dial code
and communication port. There are openings and charging
and discharging ports on the upper part,

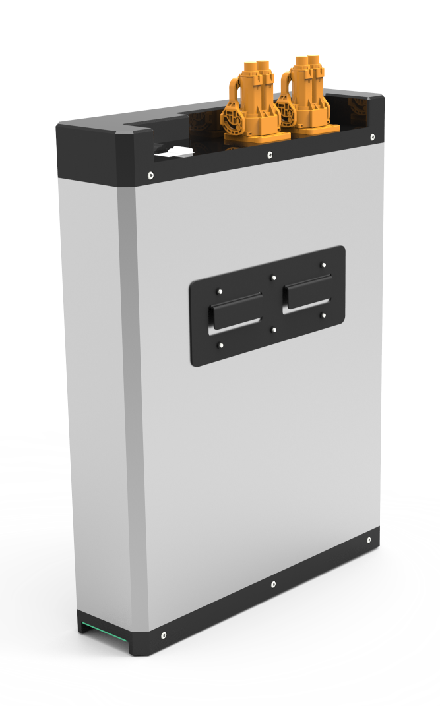

and a wall bracket on the back.
|Home Energy Storage Sysrem|
|Energy storage system model||3.6KW4.8KWh|
|Battery pack voltage||48V|
|Operating voltage range (V)||37.5-54.8V|
|Maximum continuous charging power||3.6KW|
|Maximum continuous discharge power||3.6KW|
|SOC working range (%)||10%-90%|
|System cooling method||Natural cooling|
1. The operation is convenient and quick, and it is ready to use;
2. High efficiency, energy saving and stable power supply;
3. Intelligent design, which can display the operating status of the system (SOC, output current, alarm/abnormal type, etc.).
4. Humanized alarm function and perfect online protection function, with high reliability.
5. Communication mode RS485, CAN are optional, compatible with the market.
6. The whole machine is easy to move;
7. It can be used in parallel, and supports up to 8 parallels.
1. Solar/wind system energy storage.
2. The emergency power supply can be directly used by general household appliances.
3. Communication energy storage and other emergency power supplies, etc.
4. Remarks: Need to configure the inverter control integrated machine to use.
