Lithium Iron Phosphate (LiFePO4) Battery

PW01 48100/48150/48200 (LFP 51.2V 100Ah/150Ah/200Ah)



Electrical Characteristics

Nominal Voltage

51.2V

Nominal Capacity

100Ah

150Ah

200Ah

Minimum Capacity

100Ah

150Ah

200Ah

Energy

5120Wh

7680Wh

10240Wh

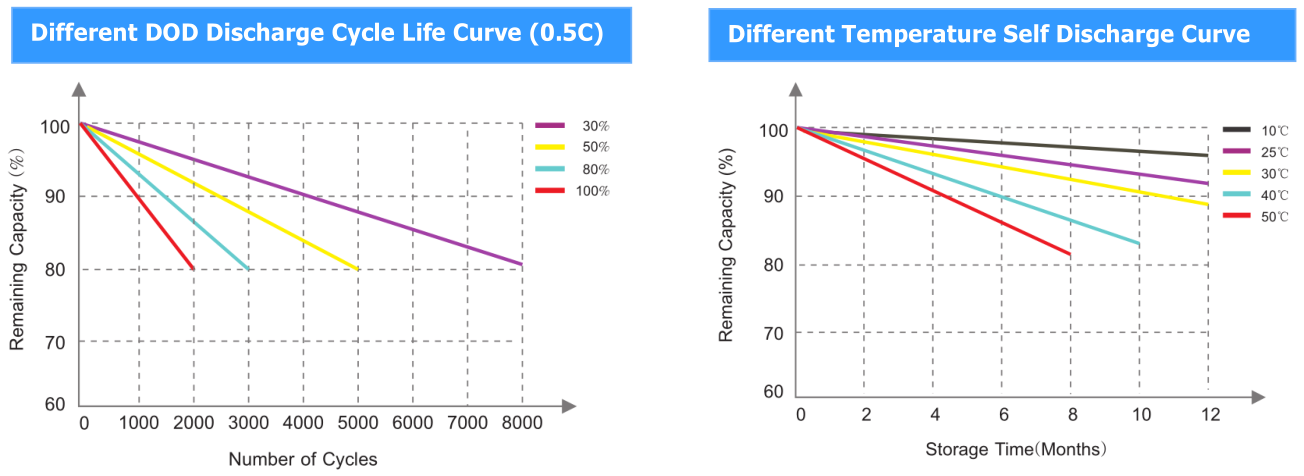

Cycle Life

>2000 cycles @0.5C 100%DOD

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Maximum Modules in paralle

15 pcs



Standard Charge and Discharge

Charge Voltage

57.6-58.4V

Charge Mode

0.2C to 58.4V, then 58.4V, charge current to 0.02C (CC/CV)

Charge Current

20A

30A

40A

Max. Charge Current

100A

Charge Voltage

57.6-58.4V

Max Continuous Discharge Current

100A (Can be customized)

Peak Discharge Current

115A 1-3S

Discharge Cut-off Voltage

40V±0.5V




Environmental

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP20


Mechanical

Shell Material

SPCC

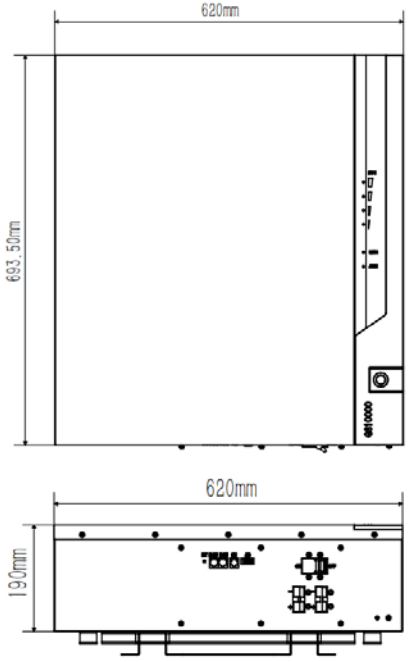

Approx. Dimensions

L693.5xW620xH190mm

Approx. Weight

50kgs

75kgs

95kgs

Terminal Type

Anderson 120A

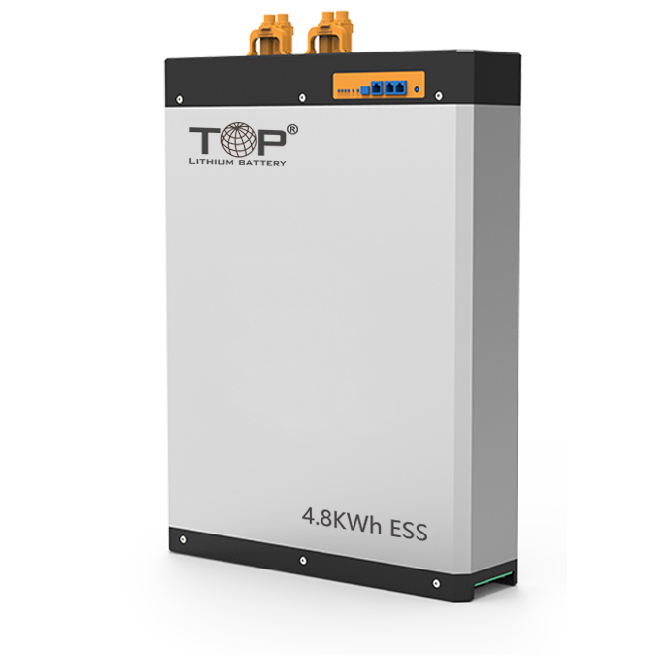

Prev:4.8KWh Home Energy Storage Sysrem Next:No more!
