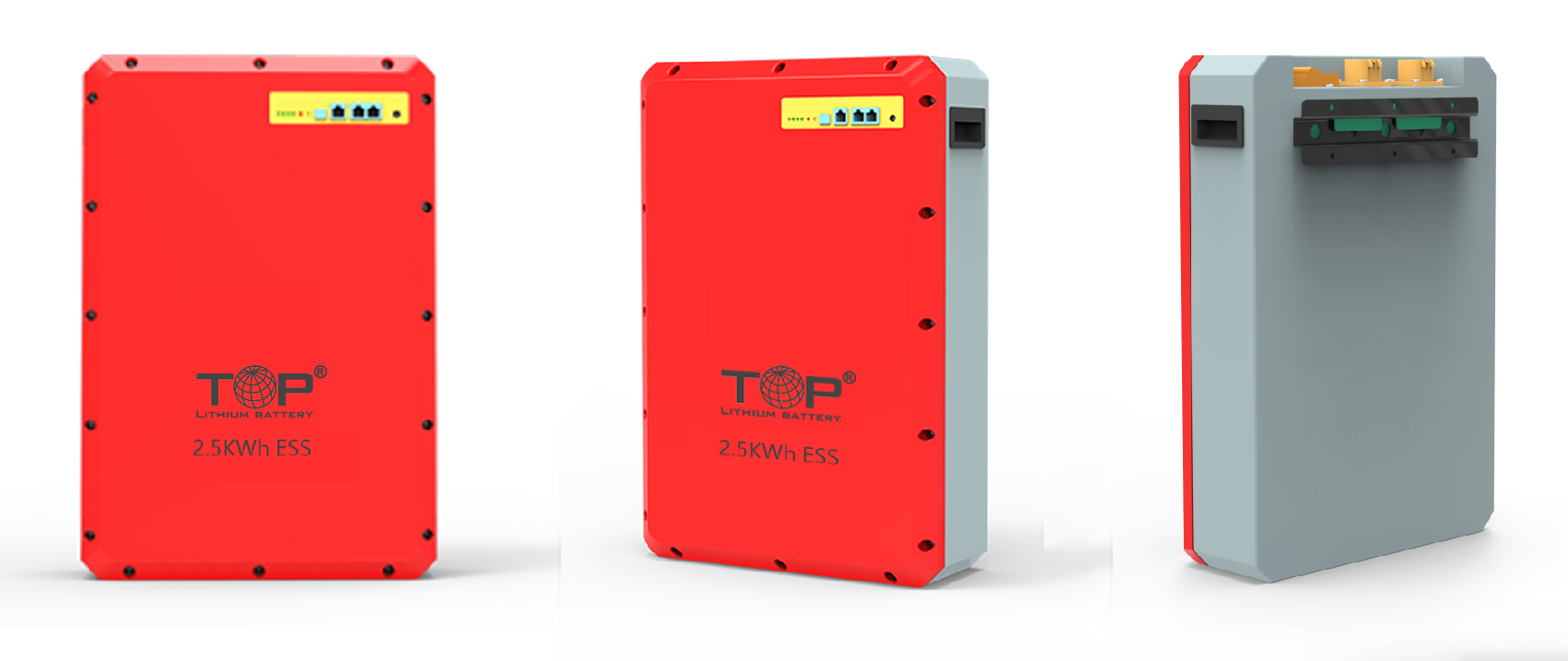

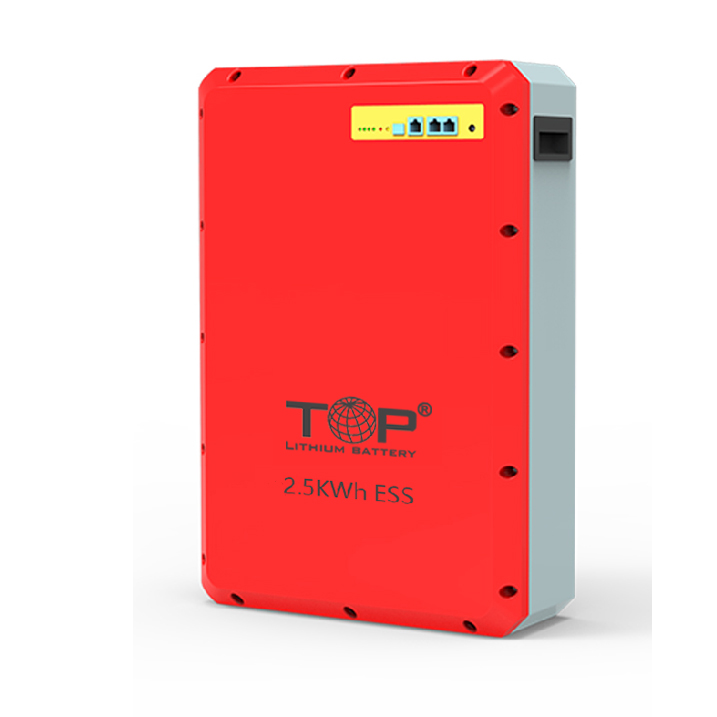

The product installation method is wall-mounted,
the color is Chinese red and aluminum gray, the shell is sheet metal,
There are built-in handles on both sides, the upper right
corner of the front has power display,
running light and fault light, and parallel dial code and
communication port. There are openings and charging

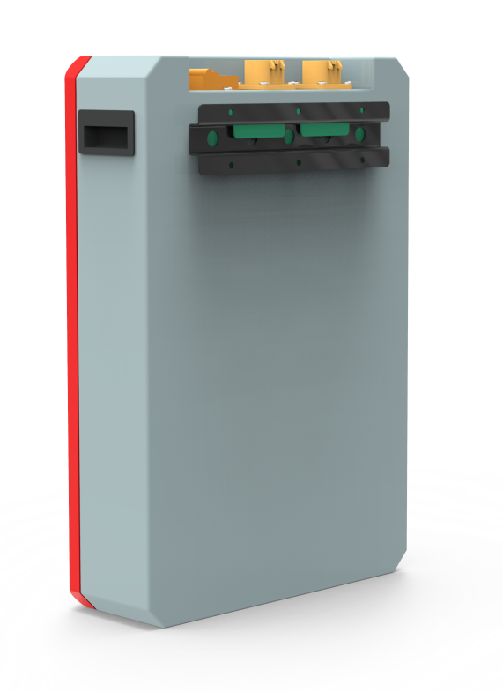

and discharging ports on the upper part, and a wall bracket
on the back.
|Home Energy Storage Sysrem|
|Energy storage system model||2KW/2.5KWh|
|Battery pack voltage||51.2V|
|Operating voltage range (V)||40-58.4V|
|Maximum continuous charging power||2KW|
|Maximum continuous discharge power||2KW|
|SOC working range (%)||10%-90%|
|Cycle life||5000 times|
|System cooling method||Natural cooling|
1. The operation is convenient and quick, and it is ready to use;
2. High efficiency, energy saving and stable power supply;
3. Intelligent design, which can display the operating status of the system (SOC, output current, alarm/abnormal type, etc.).
4. Humanized alarm function and perfect online protection function, with high reliability.
5. Communication mode RS485, CAN are optional, compatible with the market.
6. The whole machine is easy to move;
7. It can be used in parallel, and supports up to 8 parallels.
1. Solar/wind system energy storage.
2. The emergency power supply can be directly used by general household appliances.
3. Communication energy storage and other emergency power supplies, etc.
4. Remarks: Need to configure the inverter control integrated machine to use.
